Ultra Wideband Tumi Amplifiers / Solid State Tumi Amplifiers / RF Tumi Amplifiers Amanneɛbɔ Manufacturing, One Piece Ordering

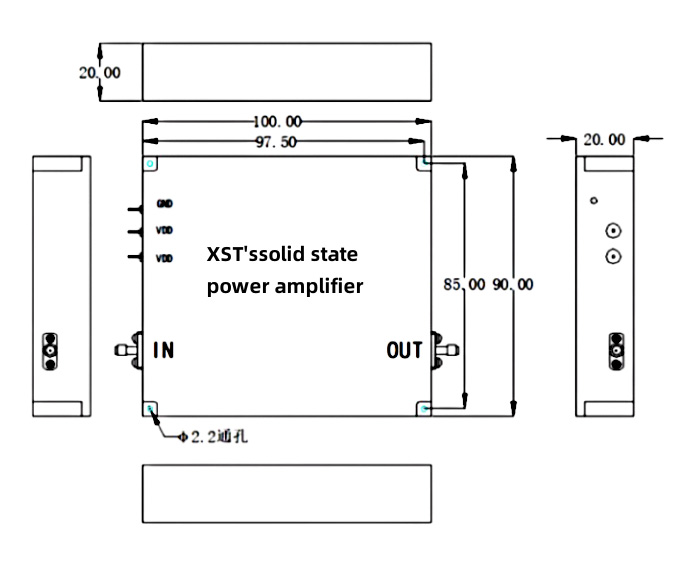

ade a wɔyɛ ho nkyerɛkyerɛmu
XST, yɛ ne ho titiriw wɔ RF amplifiers a ɛkorɔn (titiriw tumi amplifiers a ɛkata 0.2-40GHz ne 0.2-60GHz bands) a wɔyɛ ne sɛnea wɔyɛ no sɛnea wɔpɛ mu. Sɛ́ adwumayɛbea a agye din a ɛwɔ adwumayɛ kwan a edi mũ no, yɛde yɛn hoahoa yɛn ho wɔ yɛn tumi a yɛde bewie nkɔnsɔnkɔnsɔn no nyinaa wɔ fie, efi nhyehyɛe, nneɛma a wɔyɛ so kosi nea wɔde hyɛ adwuma so, mfaso soronko a ɛnyɛ sɛ ɛma RF amplifier nneɛma no yɛ papa nko, na mmom ɛtew ɛka so yiye, na ɛma adetɔfo nya ano aduru a ɛho ka sua.
Mfiridwuma ho nsɛnkyerɛnnede ahorow
| Aguade no Edin | Wideband Fixed Amplifier a Wɔde Yɛ Adwuma |
| mpɛn dodoɔ | 2- 18GHz na ɛwɔ hɔ |
| mfaso (ɛlektrɔnik mfiri) . | ≥40db na ɛwɔ hɔ |
| a ɛyɛ petee | ±1db na ɛyɛ |
| Deɛ atwam | ≥40dbm na ɛwɔ hɔ |
| in-band a ɛnyɛ nokware | ≤-70dbc na ɛwɔ hɔ |
| Nneɛma a wɔde yɛ adwuma yiye TYP | 50% na ɛwɔ hɔ. |
| anyinam ahoɔden | +28V na ɛwɔ hɔ |
| Static mprempren TYP | ≤0.25A na ɛwɔ hɔ |
| Dynamic mprempren TYP | ≤0.8A na ɛwɔ hɔ |
| nkitahodifo | SMA-50K na ɛwɔ hɔ |
Nnyinasosɛm a Ɛfa Nneɛma a Wɔyɛ ho
Sɛ wopɛ amplifier indicators a wɔayɛ no sɛnea wopɛ pii a, yɛsrɛ wo, di yɛn ho nkɔmmɔ
| mpɛn dodow (Ghz) . | tumi a ɛsen biara(W) . | mfaso (db) . | P-1type | anyinam ahoɔden | Mprempren (A) . | nkitahodifo |
| Broadband solid-state amplifiers (ahoɔden a ɛba fam) . | ||||||
| 0.2-20 na ɛwɔ hɔ | ≥1 na ɛyɛ | ≥30 na ɛwɔ hɔ | ≥28 na ɛwɔ hɔ | +11V na ɛwɔ hɔ | 0.8-2 na ɛwɔ hɔ | SMA-50K na ɛwɔ hɔ |
| 1-20 na ɛwɔ hɔ | ≥1 na ɛyɛ | ≥30 na ɛwɔ hɔ | ≥28 na ɛwɔ hɔ | +8V | 0.8-2 na ɛwɔ hɔ | SMA-50K na ɛwɔ hɔ |
| 1-4 na ɛwɔ hɔ | ≥1 na ɛyɛ | ≥30 na ɛwɔ hɔ | ≥28 na ɛwɔ hɔ | +11V na ɛwɔ hɔ | 0.8-5 na ɛwɔ hɔ | SMA-50K na ɛwɔ hɔ |
| 2-6 na ɛwɔ hɔ | ≥1 na ɛyɛ | ≥30 na ɛwɔ hɔ | ≥28 na ɛwɔ hɔ | +11V na ɛwɔ hɔ | 0.8-2 na ɛwɔ hɔ | SMA-50K na ɛwɔ hɔ |
| 6-18 na ɛwɔ hɔ | ≥1 na ɛyɛ | ≥30 na ɛwɔ hɔ | ≥28 na ɛwɔ hɔ | +8V | 0.8-2 na ɛwɔ hɔ | SMA-50K na ɛwɔ hɔ |
| 8-12 na ɛwɔ hɔ | ≥1 na ɛyɛ | ≥30 na ɛwɔ hɔ | ≥28 na ɛwɔ hɔ | +11V na ɛwɔ hɔ | 0.8-2 na ɛwɔ hɔ | SMA-50K na ɛwɔ hɔ |
| 18-40 na ɛwɔ hɔ | ≥1 na ɛyɛ | ≥30 na ɛwɔ hɔ | ≥28 na ɛwɔ hɔ | +8V | 0.8-2 na ɛwɔ hɔ | SMA-50K na ɛwɔ hɔ |
| 18- 40 na ɛwɔ hɔ | ≥1 na ɛyɛ | ≥30 na ɛwɔ hɔ | ≥28 na ɛwɔ hɔ | +8V | 0.8-5 na ɛwɔ hɔ | SMA-50K na ɛwɔ hɔ |
| 24- 28 na ɛwɔ hɔ | ≥1 na ɛyɛ | ≥30 na ɛwɔ hɔ | ≥28 na ɛwɔ hɔ | +20V na ɛwɔ hɔ | 0.8-5 na ɛwɔ hɔ | SMA-50K na ɛwɔ hɔ |
| Broadband solid-state amplifiers (ahoɔden a ɛkorɔn) . | ||||||
| 0.1-6 na ɛwɔ hɔ | 10. Nsɛm a wɔka kyerɛ | ≥40 na ɛwɔ hɔ | ≥45 na ɛwɔ hɔ | 48V na ɛwɔ hɔ | 10-20 na ɛwɔ hɔ | SMA-50K na ɛwɔ hɔ |
| 1-4 na ɛwɔ hɔ | 200 na ɛwɔ hɔ | ≥50 na ɛwɔ hɔ | ≥45 na ɛwɔ hɔ | 40V na ɛwɔ hɔ | 20-30 na ɛwɔ hɔ | SMA-50K/N na ɛwɔ hɔ |
| 2-6 na ɛwɔ hɔ | 20. Ɔde ne nsa kyerɛɛ ne so | ≥45 na ɛwɔ hɔ | ≥35 na ɛwɔ hɔ | 30V na ɛwɔ hɔ | 5-15 na ɛwɔ hɔ | SMA-50K na ɛwɔ hɔ |
| 4-8 na ɛwɔ hɔ | 200 na ɛwɔ hɔ | ≥60 na ɛwɔ hɔ | ≥50 na ɛwɔ hɔ | 40V na ɛwɔ hɔ | 20-30 na ɛwɔ hɔ | SMA-50K/N na ɛwɔ hɔ |
| 2-18 na ɛwɔ hɔ | 10/15/20 na ɛwɔ hɔ | ≥40 na ɛwɔ hɔ | ≥35 na ɛwɔ hɔ | 28V na ɛwɔ hɔ | 3-15 na ɛwɔ hɔ | SMA-50K na ɛwɔ hɔ |
| 6-18 na ɛwɔ hɔ | 10/20/100 na ɛwɔ hɔ | ≥45 na ɛwɔ hɔ | ≥35 na ɛwɔ hɔ | 28V/220V na ɛwɔ hɔ | 3-15 na ɛwɔ hɔ | SMA-50K na ɛwɔ hɔ |
| 8-12 na ɛwɔ hɔ | 10/20/30/100 na ɛwɔ hɔ | ≥45 na ɛwɔ hɔ | ≥35 na ɛwɔ hɔ | 28V/220V na ɛwɔ hɔ | 3-15 na ɛwɔ hɔ | SMA-50K na ɛwɔ hɔ |
| 18-26.5 na ɛwɔ hɔ | 10. Nsɛm a wɔka kyerɛ | ≥40 na ɛwɔ hɔ | ≥35 na ɛwɔ hɔ | 28V na ɛwɔ hɔ | 3-10 na ɛwɔ hɔ | SMA-50K na ɛwɔ hɔ |
| 18-40 na ɛwɔ hɔ | 5/10 na ɛwɔ hɔ | ≥35 na ɛwɔ hɔ | ≥30 na ɛwɔ hɔ | 20V na ɛwɔ hɔ | 4-15 na ɛwɔ hɔ | SMA-50K na ɛwɔ hɔ |
| 26.5-40 na ɛwɔ hɔ | 20. Ɔde ne nsa kyerɛɛ ne so | ≥45 na ɛwɔ hɔ | ≥35 na ɛwɔ hɔ | 20V na ɛwɔ hɔ | 15-25 na ɛwɔ hɔ | SMA-50K na ɛwɔ hɔ |
Nsɛm a wɔakyerɛw
Mfiridwuma Foforo, Adwumayɛ a Ɛkorɔn
XST agye din bere tenten sɛ ɛyɛ amanne kwan so nneɛma a ɛma ahoɔden a ɛkorɔn a ɛda adwumayɛ ne su a ɛda nsow adi wɔ dwumadie ahodoɔ mu.
1, ultra-wideband: XST tumi amplifiers wɔ ultra-wideband su, a ɛkata frequency ahorow pii so, a ɛfata ma nkitahodi ahorow a ɛkɔ ntɛmntɛm, radar ne mfoninitwa dwumadie.
2, mfaso a ɛkorɔn: mfaso a ɛkorɔn yɛ ade titiriw foforo a ɛwɔ XST tumi amplifier no mu, ebetumi ama amplitude a ɛwɔ input sɛnkyerɛnne no mu no ayɛ kɛse kɛse, de ahwɛ ahu sɛ sɛnkyerɛnne no gyina pintinn na emu da hɔ wɔ nkrasɛm no mu.
3, linearity a ɛkorɔn: XST tumi amplifier wɔ linearity a ɛkorɔn, ebetumi atew sɛnkyerɛnne distortion no so, ama nhyehyɛe no adwumayɛ nyinaa atu mpɔn.
4, ahoɔden a ɛkorɔn: XST tumi amplifier wɔ output a tumi pɔtee bi, tumi a wɔde di dwuma wɔ tumi a wɔde ma tumi no sua. Eyi ho hia na ama wɔatrɛw nnwinnade a wɔde di dwuma mu na wɔatew ahoɔden a wɔde di dwuma no so.
5, trɛw output dynamic range: wide output dynamic range ma XST tumi amplifier betumi adi sɛnkyerɛnne akɛse nsakrae a enni aniberesɛm distortion anaa saturation.
6, ahoɔden saturation resistance: wɔ asɛm a ɛkorɔn input sɛnkyerɛnne, XST tumi amplifier betumi akura stable amplification adwumayɛ, ɛnyɛ mmerɛw sɛ wobɛhyɛn saturation tebea. Saa ade yi ma wotumi de ho to so na ɛyɛ den bere a woredi nsɛnkyerɛnne akɛse ho dwuma no.
7, soronko sɛnkyerɛnne-to-dede ratio: XST tumi amplifier output sɛnkyerɛnne yɛ kronkron kɛse, dede level a ɛba fam. Eyi ho hia na ama sɛnkyerɛnne ne dede nsusuwii ne nhyehyɛe no nkate atu mpɔn.
8, ɔhyew a ɛyɛ den a wɔsɛe no: XST tumi amplifier gye ɔhyew a ɛkɔ anim nhyehyɛe, de hwɛ hu sɛ adesoa a ɛkorɔn no da so ara betumi akura ɔhyew a wɔsɛe no adwumayɛ pa mu, na wɔasiw ɔhyew a ɛboro so a mfiri a ɛsɛe de ba no ano.
Bo/Adwumayɛ Nkyɛmu a Ɛkorɔn
Sɛ́ adwumayɛbea a ɛyɛ tumi a wɔde yɛ nneɛma a ɛma ahoɔden no fibea no, XST tumi nya nneɛma a wɔde yɛ nneɛma a ɛyɛ papa wɔ bo a ɛyɛ papa so denam nneɛma a wɔde yɛ nneɛma pii a wɔtɔ ho nhwɛso so, a ɛnyɛ sɛ ɛtew nneɛma a wɔyɛ ho ka so nko, na mmom ɛma ahoɔden a wɔde yɛ nneɛma no gyina pintinn na wotumi de ho to so nso wɔ adwumayɛ mu. Bere koro no ara mu no, yɛn nhyehyɛe a yɛde hwɛ nneɛma pa ne ne bo so no hwɛ hu sɛ anammɔn biara a wɔfa so yɛ nneɛma no yɛ nea eye ma ɛka a wɔbɔ, a yɛmfa nneɛma a wɔyɛ no yiye mmɔ afɔre. Nea afi mu aba ne sɛ, ɛnyɛ sɛ XST ahoɔden a ɛma nneɛma yɛ kɛse no wɔ anyinam ahoɔden ne honam fam nneɛma a eye kyɛn so nko, na mmom ɛma yɛn adetɔfo nya ahotoso ne nkamfo nso denam bo a ɛfata na ɛda adi pefee so.
Wɔayɛ no sɛnea wɔpɛ
XST de ne hoahoa ne ho sɛ ɛyɛ papa wɔ amanne kwan so nneɛma a wɔyɛ mu, ɛde n’adwene si ankorankoro ahwehwɛde ne dwumadie tebea a egyina yɛn adetɔfoɔ ankorankoro ahiadeɛ so. Ɛdenam ntease a emu dɔ a yebenya wɔ yɛn adetɔfo ahiade ankasa ne mmeae a wɔde di dwuma ho no, XST tumi kyerɛ biribiara a ɛkɔ akyiri sɛnea ɛbɛyɛ a ɛde ahoɔden a ɛma ahoɔden a ɛkorɔn a ɛne yɛn adetɔfo akwanhwɛ hyia ma. Sɛ ɛyɛ anyinam ahoɔden adwumayɛ ho nsɛnkyerɛnne te sɛ frequency range, output power, gain, loss, ne nea ɛkeka ho, anaa honam fam su te sɛ kɛse, emu duru, interface type, ne nea ɛkeka ho no, XST tumi nya customisation. Saa ɔsom nhyehyɛe a wɔayɛ no sɛnea wɔpɛ yi nyɛ sɛ ɛdi adetɔfoɔ ahodoɔ adwumayɛ a ɛkorɔn ahwehwɛdeɛ ho dwuma nko, na mmom ɛkyerɛ XST adwumayɛfoɔ ahoɔden ne nnoɔma foforɔ a ɛwɔ tumi a ɛma nneɛma yɛ kɛseɛ mu. Mprempren, wɔde XST power amplifiers di dwuma kɛse wɔ nkitahodi, radar, mfoninitwa, aduruyɛ nnwinnade, asraafo ne ahobammɔ ne nnwuma afoforo mu na wogye tom yiye.
